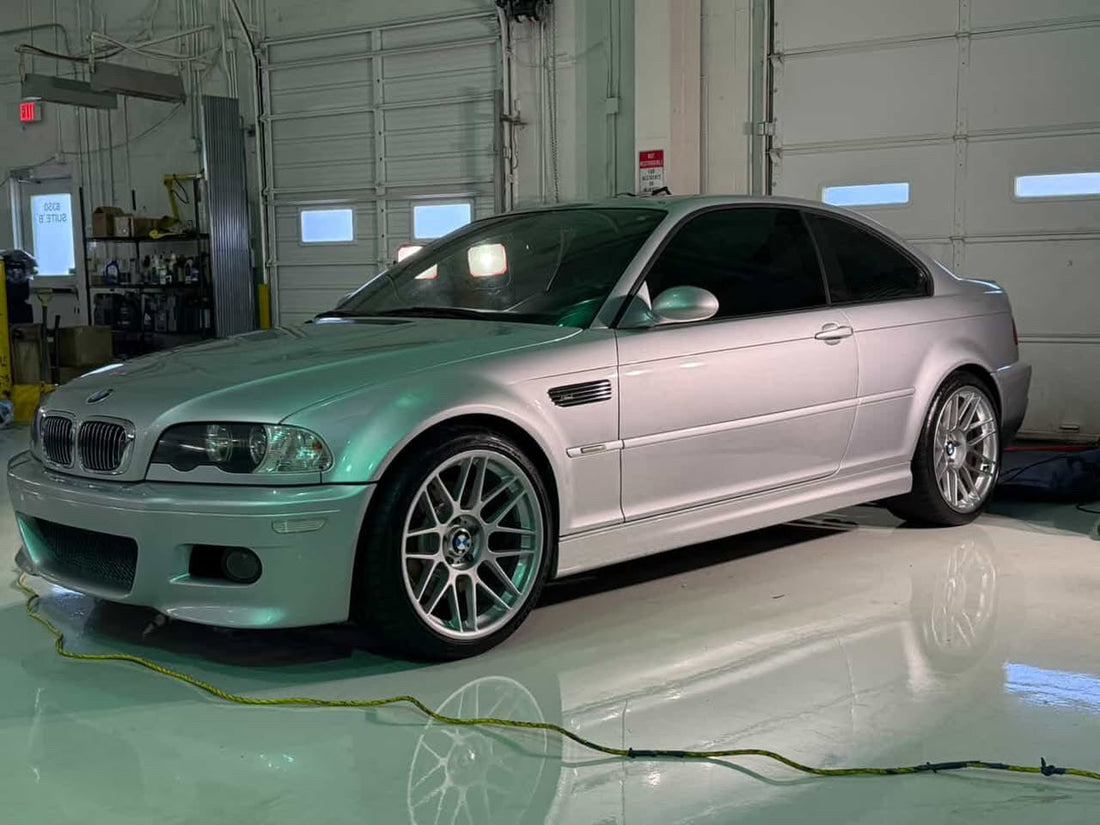

Behind the Build: A Street/Track TL-ONE Setup for Byron's E46 M3

At Thunder Lane US, some of our favorite projects are the ones that live in the gray area — cars that need to feel composed and comfortable on the street, yet sharp and confidence-inspiring on track. This upcoming E46 M3 TL-ONE build is exactly that.

Byron wanted to make sure his E46 M3 could handle rough commutes, while still holding its own on track.

Before installation and corner balancing, we wanted to share a preview of what makes this suspension setup unique — and why small internal details can make a big difference in how a car feels at the limit.

A Closer Look at This TL-ONE Configuration

This E46 M3 is running a TL-ONE Single Adjustable coilover, but with a custom internal configuration tailored specifically for a street/track hybrid mission. At the center of that setup is a check valve integrated into the damper’s rebound circuit.

At a glance, single-adjustable dampers are often misunderstood as “simple.” In reality, how oil flow is managed internally defines how effective that single adjuster truly is.

What the Shock Dyno Is Showing

The shock dyno graph above compares two dampers with the same base valving:

• Red line: TL-ONE damper fitted with a check valve, adjuster set at 10 clicks (mid-range)
• Blue line: Same valving spec without the check valve

What’s important here isn’t just peak force — it’s where and how that force is generated.

You’ll notice that with the check valve fitted:

• Rebound forces increase
• Compression forces remain largely unchanged

This separation is intentional.

Why That Matters on Track — and on the Street

In most conventional damping systems with symmetric oil flow, increasing adjustment to gain support also raises forces on both rebound and compression. While that can improve platform control, it often comes with tradeoffs:

• Harshness over curbing
• Reduced compliance over uneven surfaces
• A “busy” axle mid-corner

The check valve changes that behavior.

By introducing additional restriction only on the rebound side, we’re able to:

• Build crisper suspension loading
• Improve turn-in sharpness
• Increase steering response and feedback

All without over-stiffening compression — which means the car still absorbs bumps and surface imperfections instead of being deflected by them.

What This Feels Like from the Driver’s Seat

Imagine turning into a corner with load building on the outside tires. You want more support, more precision — but not a harsher ride or a nervous chassis.

With a traditional setup, your only option might be to stiffen the adjuster and accept the compromises. With the check valve in place, small knob changes primarily influence rebound control, letting the suspension:

• Load smoothly and decisively on turn-in
• Stay composed through mid-corner imperfections
• Maintain balance where confidence matters most

This is especially important on a car like the E46 M3, where chassis feedback and balance are central to the driving experience.

Fine Tuning Still Matters

This setup still retains:

• 20 clicks of external adjustment
• Internal bleed configurations tailored to the vehicle’s purpose
• Room to refine balance during alignment and corner balancing

The check valve doesn’t remove adjustability — it makes that adjustability more precise.

What’s Next

This TL-ONE setup will be installed and corner balanced soon, and we’ll be sharing the results once the car hits the ground. This build represents exactly what Thunder Lane is about: using engineering detail — not just stiffness — to create suspension that works in the real world.

Stay tuned for the follow-up once this E46 M3 is dialed in.
